Description
เครื่องพับผ้าอุตสาหกรรม / Folding Machine
สามารถเลือกใช้งานได้ตามชนิดของผ้า ด้วยการทำงานที่แตกต่างอย่างมีเอกลักษณ์
Sheets Folding Machine Towel Folding Machine Folding Machine (general)

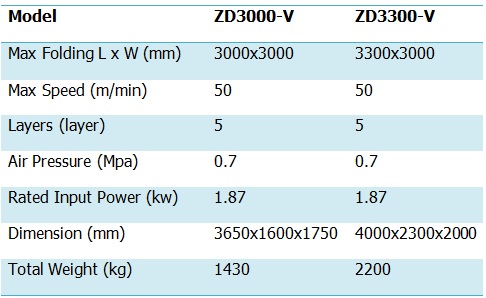

เครื่องพับผ้าปูที่นอน / Sheets Folding Machine
ด้วยระบบการทำงานหน้าจอแอลซีดีที่ชาญฉลาด ทำให้อินเตอร์เฟซระหว่างผู้ใช้และเครื่องจักรได้ดี พร้อมทั้งระบบความปลอดภัยแก่ผู้ใช้
Product overview
1. It has following two horizontal three longitudinal five percent, the biggest fold function scope 3300 mm.
2. Fold 3000 x Two sets of independent motor inverter control with folding of 50 m/min speed in adjustable steplessly within the function, and various types of screed machine matching.
3. Adopting PLC programmable controller, strong anti-jamming. Highly intelligent LCD screen operation system, has the good human-machine interface.
4. Perfect the diagnosis function and safety protection system for daily use, and maintenance of machine of domestic initiative, anti-static function more increased machine working reliability and stability.

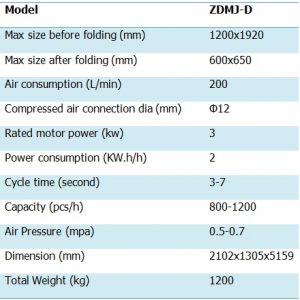

เครื่องพับผ้าเช็ดตัว / Towel Folding Machine
ควบคุมอัตโนมัตด้วยหน้าจอแอลอีดี และสามารถเลือกใช้งานได้หลายภาษา ขนาดของผ้าจะถูกตรวจจับและสามารถปรับความกว้างของการพับได้ด้วยเซนเซอร์
Product overview
1.Auto control with big LED screen and multi-language interface.
2.The sizes of towels can be detected and the folding width can be adjusted by the sensor. Lateral folding is done with relative folding blade.
3.The length of towels can be measured with the coder on the revolving shaft and the folding mode can be automatically decided. The first cross fold is done via running in both directions and blowing system.
4.The structure innovatively designed is adaptable to different thickness of towels and ensure good result of folding and enter the second fold smoothly.
5.The second cross fold is done also via motor running in both directions and blowing system with adding the adjustable tilting degree of the conveying terrace so that the folding result is ensured.
6.Output positioned accurately. Auto counter for stacking. Fast respond. Short work cycle.
7. Combined with international advanced technology on the fields of computer, communication and controlling, the multi-intelligent controlling system is designed specially for TOWEL folding, which can be surveilled and controlled via net, and has the functions of characteristic embedded software and comprehensive intelligent surveillance.
8.Programmable. Auto and manual modes available.
9.An auto-retractor device is installed at the end of stack, which can control the transfer belts stretch out and retract without change of direction so as to smoothly transport stacked towel of multi-pieces to the next transfer belts.

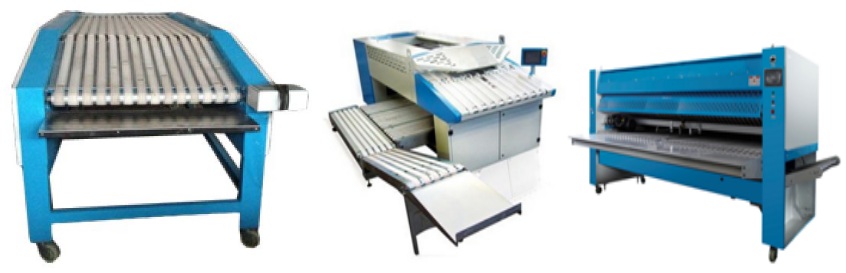

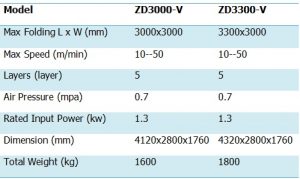

เครื่องพับผ้า / Folding Machine
Product overview
1. Two lateral, three cross, total five foldings, the biggest folding scope 3300 mm.
2. Fold 3000 x Two sets of independent motor inverter control with folding of 50 m/min speed in adjustable steplessly within the function, and various types of screed machine matching.
3. Microprocessor control with LCD display and built in diagnostic system.
4. Perfect the diagnosis function and safety protection system for daily use, and maintenance of machine of domestic initiative, anti-static function more increased machine working reliability and stability.
5. One production counter per lane.
6. All folds made by air blast and pinch rolls.
